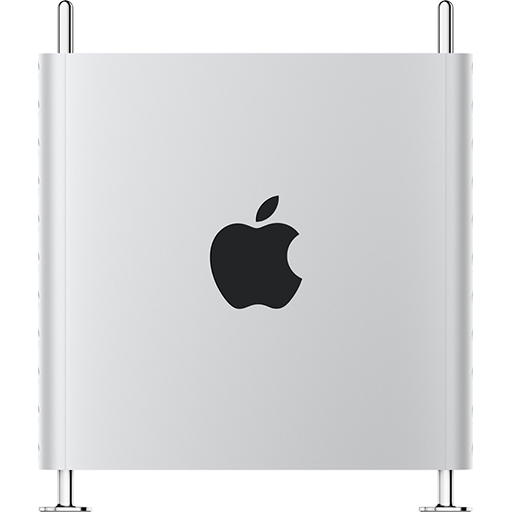

Apple Mac Pro Tower Model 7,1 - Year 2019

Configure Your Apple Mac Pro Tower Model 7,1 - Year 2019

  • Configure

    Processor

    Mac Pro is powered by Intel Xeon W processors, which feature Turbo Boost, Hyper-Threading, up to 66.5MB of shared L3 cache on a single chip, AVX-512 vector instructions, and 64 PCI Express lanes for massive bandwidth. It’s also configurable up to 28 processing cores, allowing it to support up to 1.5TB of memory at 2933MHz. And thanks to the power and thermal design of Mac Pro, Intel Xeon W processors can run fully unconstrained, delivering maximum performance.

    Selecting a processor with the right number of cores for your needs largely depends on the software you’ll be using. For instance, single-thread applications operate more efficiently with higher clock speeds, while software that uses multithreading will run best on a processor with more cores.


    Memory

    Mac Pro supports up to 768GB of quad-channel 2666MHz DDR4 ECC memory for the 8-core Intel Xeon processor, up to 768GB of six-channel 2933MHz DDR4 ECC memory for the 12-core and 16-core Intel Xeon processors, and up to 1.5TB of six-channel 2933MHz DDR4 ECC memory for the 24-core and 28-core Intel Xeon processors.

    With more memory in your Mac Pro, you can run more apps simultaneously and work with larger data sets with a higher rate of performance. Your Mac Pro is also user accessible with 12 physical DIMM slots, so in the future you can upgrade to more memory that is compatible with your processor.

    The 8GB, 16GB, and 32GB DDR4 modules are R-DIMMs; the 64GB and 128GB DDR4 modules are LR-DIMMs. Mac Pro supports R-DIMM and LR-DIMM memory modules, but the two DIMM types cannot be used in the same system.


    Graphics

    Mac Pro features a modular graphics expansion architecture called the Mac Pro Expansion Module, or MPX Module, that delivers more power and bandwidth and integrates Thunderbolt throughout the system. You can choose one or two MPX Modules to configure the graphics in your Mac Pro, or add MPX Modules later to change or upgrade your Mac Pro graphics capabilities.

    • Gen 2 Addition

    • Gen 2 Addition


    Storage (Apple)

    Mac Pro can be configured with up to 8TB of fast NVMe-based SSD storage. SSD storage delivers significantly improved performance compared with a traditional hard drive — speed you will notice when you start up your Mac Pro, launch an application, open a big project, or tackle data-intensive tasks. SSD storage has no moving parts, so it operates silently. And Mac Pro storage is powered by the Apple T2 Security Chip and is always encrypted.


    Storage (M.2 NVMe)

    Mac Pro requires the macOS to be installed on the original Apple storage (above). The Apple storage cannot be swapped due to the Apple T2 security chip. The Mac Pro has spare PCIe slots that can be utilized for up to 8x NVMe M.2 SSDs (up to 4x drives on one PCIe slot using a Quad NVMe M.2 Mount). The additional storage can be dedicated for storage or work - cache, footage, sessions, project files, etc. Drives can be partitioned independently, or in RAID 0 (performance) or RAID 1 (redundancy) upon request. For 3D Modeling or 4K video editing, we recommend a single NVMe SSD. For 6K or 8K video editing, we recommend a NVMe RAID0 with blazing read/write speeds.

    1x NVMe SSD: 2000MB/s Write | 2500MB/s Read
    2x NVMe SSD RAID0: 3500MB/s Write | 5000MB/s Read
    3x NVMe SSD RAID0: 4000MB/s Write | 6000MB/s Read
    4x NVMe SSD RAID0: 5000MB/s Write | 7000MB/s Read (up to 9000MB/s Read depending on file size and format)


    Storage (SATA)

    Mac Pro does not have bays for traditional 2.5-inch or 3.5-inch drives. The Sonnet Fusion Flex J3i Mounting System adds three SATA drive bays - supporting any combination of 2.5-inch solid-state drives or 3.5-inch hard drives. Increase storage capacity by adding more drives inside your Mac Pro. Note: The Sonnet Fusion Flex J3i must be checked (added) to enable the drives to be selected.

    M.2 NVMe SSD: ~ 2500MB/s (section above)
    2.5-inch SATA SSD: ~ 500MB/s (ideal for storage/backup if you want to eliminate the use mechanical drives)
    3.5-inch SATA HDD: ~ 200MB/s (ideal for infrequently accessed files; longterm storage)

    • Solid-State Drives

      Hard Drives

    • Solid-State Drives

      Hard Drives

    • Solid-State Drives


    Afterburner

    Apple PCIe accelerator card that offloads the decoding of ProRes and ProRes RAW video codecs in Final Cut Pro X, QuickTime Player X, and supported third-party applications. Occupies one PCIe x16 slot.


    Port Expansion

    Mac Pro comes standard with:
    Four Thunderbolt 3 ports - Support for Thunderbolt 3 (up to 40Gb/s), USB-C (up to 10Gb/s), and DisplayPort
    Two USB 3 ports - Support for USB-A (up to 5Gb/s)
    Two 10Gb Ethernet ports - Support for 10Gb Ethernet performance over copper cabling and Nbase-T industry standard: 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet link speeds using RJ-45 connectors


    Wireless and Bluetooth

    Mac Pro comes standard with:
    Wi-Fi 802.11ac Wi-Fi wireless networking
    Bluetooth 5.0 wireless technology


    Operating System

    Choose the operating system that best fits your software requirements.


    Keyboard

    Choose your keyboard.


    Mouse and Magic Trackpad

    Choose your mouse or trackpad.


    $75 shipping per unit · Free local pickup

    Lead time: 1 to 2 weeks
    See Policies & FAQ for details.

    $ 3,000
  • Model Identifier7,1
    Chassis TypeNewly designed modular tower
    Processor ClassIntel Xeon W processor (Cascade Lake-X)
    Processor SocketFCLGA3647
    Processor ModelsIntel® Xeon® W-3223 (3.5 GHz base frequency, up to 4.0 GHz with Intel® Turbo Boost Technology, 16.5 MB cache, 8 cores)
    Intel® Xeon® W-3225 (3.7 GHz base frequency, up to 4.3 GHz with Intel® Turbo Boost Technology, 16.5 MB cache, 8 cores)
    Intel® Xeon® W-3235 (3.3 GHz base frequency, up to 4.4 GHz with Intel® Turbo Boost Technology, 19.25 MB cache, 12 cores)
    Intel® Xeon® W-3245 (3.2 GHz base frequency, up to 4.4 GHz with Intel® Turbo Boost Technology, 22 MB cache, 16 cores)
    Intel® Xeon® W-3265 (2.7 GHz base frequency, up to 4.4 GHz with Intel® Turbo Boost Technology, 33 MB cache, 24 cores)
    Intel® Xeon® W-3275 (2.5 GHz base frequency, up to 4.4 GHz with Intel® Turbo Boost Technology, 38.5 MB cache, 28 cores)
    Memory Slots12 (two slots per channel)
    Memory TypeDDR4 2666MHZ or 2933MHz ECC depending on processor model
    Maximum Memory1TB or 2TB depending on processor model
    GraphicsSupports four double width, full length graphics cards
    AMD Radeon Pro 580X
    AMD Radeon Pro Vega II
    AMD Radeon Pro Vega II Duo
    Drive BaysTwo onboard M.2 slots for NVMe drives
    Up to 4TB of SSD storage
    256GB SSD (One 256GB module)
    512GB SSD (Two 256GB modules)
    1TB SSD (Two 512GB modules)
    2TB SSD (Two 1TB modules)
    4TB SSD (Two 2TB modules)
    Up to 2.6GB/s sequential read and 2.7GB/s sequential write performance
    Storage encrypted by the Apple T2 Security Chip
    PCIe Expansion8x PCIe slots
    Expension PortsI/O card installed in the half-length x4 PCI Express slot with:
    Two USB 3 ports
    Support for USB-A (up to 5Gb/s)
    Two Thunderbolt 3 ports
    Support for Thunderbolt 3 (up to 40Gb/s)
    Support for USB-C (up to 10Gb/s)
    Support for DisplayPort
    NetworkTwo 10Gb Ethernet ports
    Support for 10Gb Ethernet performance over copper cabling
    Support for Nbase-T industry standard: 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet link speeds using RJ-45 connectors
    Wireless and BluetoothWi-Fi: 802.11ac Wi-Fi wireless networking, IEEE 802.11a/b/g/n compatible
    Bluetooth: Bluetooth 5.0 wireless technology
    Power Supply1280W at 108–125V or 220–240V
    1180W at 100–107V
    Operating SystemmacOS Catalina 10.15
    DimensionsHeight: 20.8 inches (52.9 cm)
    Width: 8.58 inches (21.8 cm)
    Depth: 17.7 inches (45.0 cm)
